PSYC4411

Beyond Tabular

Deep Learning, LLMs and Generative AI in Psychological Research

Week 11 · Monday 18 May 2026

Today’s Plan

Deep Learning Architectures

Architectures match the data
CNNs — convolution, feature hierarchies
Behavioural science applications: pose, action, faces
RNNs and LSTMs — memory for sequences
Case study: pose estimation for cognitive load

LLMs and Generative AI

What an LLM actually is
Tokens, embeddings, the geometry of meaning
Self-attention and the transformer block
Pre-training → instruction tuning → RLHF
Image, video, audio — the rest of GenAI

Bridge from Weeks 9 and 10

In Week 10 you trained an MLP — a stack of fully-connected neurons that takes a flat vector in and produces a prediction.

Fine for tabular data — rows of participants, columns of variables
But real-world data has structure a flat MLP throws away
Images have spatial structure (nearby pixels belong together)
Speech, EEG, gesture have temporal structure (order matters)
Language has both, plus long-range dependencies

When the architecture matches the structure of the data, fewer parameters do more. The network can learn useful features instead of needing them engineered by hand.

Deep Learning Architectures

CNNs, RNNs, and the shape of behavioural data

Three Data Types, Three Architectures

Tabular

Rows × columns. Order doesn’t matter. MLP works fine.

Images / Video

Spatial structure. Nearby pixels matter. CNN.

Sequences / Language

Temporal structure. Order matters. RNN/LSTM — or Transformer.

Same underlying maths (weights, activations, gradient descent) — different wiring to match the data.

Architectures Overview

Three data types and the architectures that match them: tabular into MLP, images into CNN, sequences into Transformer

What Is a Convolution?

A small learnable filter slides across the image. At each position it produces one number — how strongly its pattern is present there. Hundreds of filters per layer, all learned from data.

Input image (5×5)

→

Filter (3×3)

-1

a vertical-edge detector

→

Activation map (3×3)

−2

−3

−2

Bright = strong response. This filter responds strongly to vertical edges where the image goes from dark to light. Other filters (curves, textures, colour blobs) work the same way — they all get learned from data.

Stacked Layers Build a Hierarchy

Early layers detect edges, textures, colour blobs
Middle layers combine those into parts — an eye, a wheel, a corner of a mouth
Later layers combine parts into whole objects — a face, a car, a posture
Pooling between layers compresses spatial information so deeper layers can “see” a wider region

Nobody designs these features. The network discovers them. This is representation learning (Week 9) applied to images.

From Edges to Objects

A CNN feature hierarchy showing edges in early layers, parts in middle layers, and whole objects in the final layer

ImageNet 2012

CNNs were niche for decades. Then Krizhevsky, Sutskever & Hinton (2012) halved the error rate on 1.2M images, 1,000 categories.

Within five years CNNs dominated every image task — and started spreading to medical imaging, video, and behavioural science.

Krizhevsky, A., Sutskever, I., & Hinton, G. (2012). ImageNet classification with deep CNNs. Communications of the ACM. doi.org/10.1145/3065386

CNNs in Behavioural Science: Pose Estimation

Marker-less pose estimation: CNNs trained to localise body landmarks in video frames. No physical markers, no calibrated rigs — just a phone camera.

DeepLabCut

Animal & human pose tracking, the foundational tool in behavioural neuroscience.

Mathis et al. (2018)

SLEAP

Multi-animal pose tracking. Built for social behaviour studies.

Pereira et al. (2022)

OpenPose

Real-time multi-person 2D pose for humans. Workhorse of gesture and gait research.

Cao et al. (2019)

MediaPipe

Google’s on-device pose, face, hand tracking. Runs in a browser, runs on a phone.

Free, open-source, no marker set-up.

Two Ways to Estimate Pose

Top-Down

Detect people first, then find keypoints inside each box.

→

1. Detect persons

2. Pose per person

Examples: HRNet, AlphaPose, ViTPose
Accurate — each pose has its own crop
Slower with many people (cost scales with N)

Bottom-Up

Find all keypoints first, then group them into people.

→

1. All keypoints

2. Group into people

Examples: OpenPose, MediaPipe
Fast — cost is roughly constant with N
Grouping is hard in crowded scenes

Same end product (keypoints per person) — very different inside.

Facial Expression Analysis & FACS

Automated Facial Action Coding — CNN detects individual muscle movements (AUs)
Microexpression detection in real time
Emotion classification from combinations of AUs
In use in clinical psychology, marketing, deception research

Be sceptical of “emotion”

Barrett et al. (2019) — thorough critique of inferring discrete emotion categories from facial movements.

Action units are measurable. “Anger” as a face is contested.

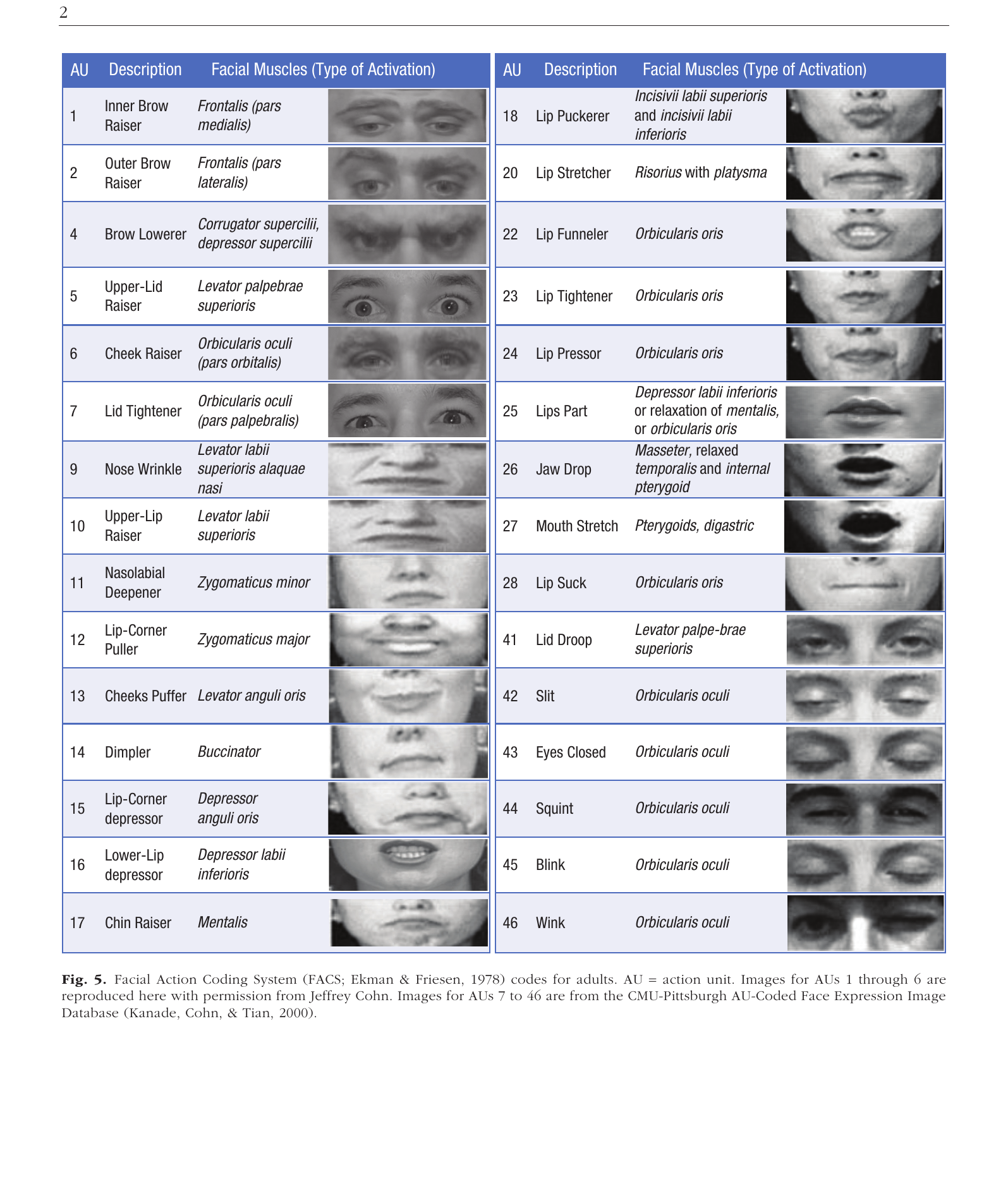

FACS Action Units table from Barrett et al. 2019, Figure 5: each AU (1, 2, 4, 5, 6, etc.) with description, facial muscle, and example photograph

FACS Action Units (Ekman & Friesen, 1978). Figure from Barrett et al. (2019).

Automated Behaviour Coding

Action recognition — what is the person doing in this clip? Walking, reaching, gesturing, falling.
Observational coding — replacing thousands of hours of manual video review
Mother–infant interaction studies — automated gaze, touch, vocalisation coding
Clinical contexts — autism behavioural markers, motor symptoms in Parkinson’s, fall detection in aged care

One video clip in → one or more behavioural codes out. The CNN replaces (some of) the human rater. Speed and scale increase by orders of magnitude.

Think About It

Pose estimation has made behavioural research dramatically cheaper and faster — a single laptop can now do what once needed an expensive motion-capture lab.

What does this mean for the kinds of studies that get done? Does it widen access to good methods, change which questions get asked, or both?

Case Study: Pose Estimation for Cognitive Load

Suppose you want to study cognitive load: when participants are mentally taxed, do their body movements change?

Traditional approach: motion-capture suit, infrared markers, calibrated cameras — tens of thousands of dollars
New approach: phone camera + a CNN + a classical ML model on top
Same scientific question. Two orders of magnitude cheaper.

This is the integrated workflow: deep learning extracts features that classical ML then uses. Most applied behavioural pipelines look like this.

Inside the Study: OpenMATB + Pose

Task: OpenMATB — four concurrent sub-tasks (system monitoring, tracking, communications, resource management)
Manipulation: Low / Moderate / High workload conditions, controlled across sessions
Participants: N = 49, each tested across all three conditions
Synchronised recording: task performance + eye-tracking + heart rate / SCR + webcam video for pose
Pose features: head RMS rotation, blink aperture, postural sway, derived from MediaPipe keypoints

Workload effects show up in every modality — performance, physiology, eye, and pose. Pose tracks workload as well as traditional physiological measures.

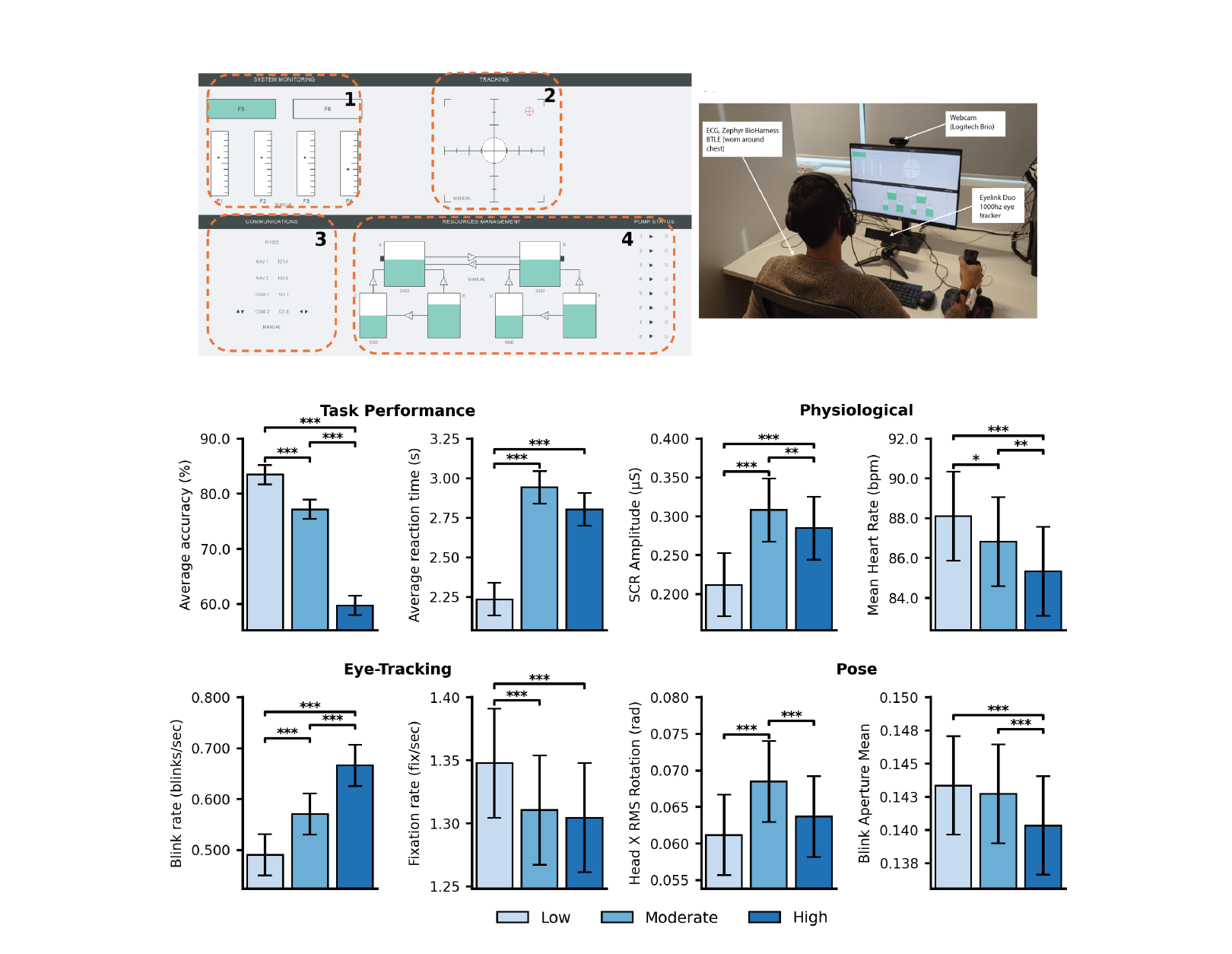

Figure 1 from Patil et al.: OpenMATB sub-task layout, experimental setup with synchronised recording, and bar charts of representative task-performance, physiological, eye-tracking, and pose features across Low/Moderate/High workload

Patil et al. (under review) — Pose Estimation for Cognitive Workload Classification.

The Workflow

1. Record

Phone-camera video. No markers.

→

2. CNN Pose

DeepLabCut / MediaPipe extracts keypoints.

→

3. Features

Velocity, smoothness, postural sway, blink rate.

→

4. Classical ML

Random forest, logistic regression (Week 6).

→

5. Predict

Cognitive load state per trial.

The CNN replaces the marker-tracking hardware. The downstream ML is the same code you wrote in Week 6.

2D Pose Detection in Sport — AFL Example

Real game footage → CNN detects and tracks every player’s pose, in real time, no markers.

Multi-person 2D pose tracking on broadcast video. Same machinery, scaled from one webcam to a whole field of players.

Live Demo: Webcam → CNN Pose

Same machinery as the case study — running in your browser, on your webcam, in real time.

MediaPipe Pose & Face Mesh

Webcam stream → CNN extracts body / face keypoints → overlay drawn on top.

Launch live demo (new tab)

Watching the CNN tag joints in real time is a useful sanity check — you can see which parts the model finds easy or hard.

Think About It

A research team uses a CNN to score facial expressions in clinical interviews, replacing two human raters. The model agrees with humans 85% of the time. They publish faster, sample more participants, and improve statistical power.

What is lost? What is gained? When would you trust the model over the humans — and does the answer change if the model was trained on a population that doesn’t look like yours?

Inside One RNN Cell

For sequences — speech, EEG, gestures — the network needs memory. The hidden state is that memory.

$Inside one RNN cell at time t: the previous hidden state h_{t-1} enters from the left, the current input x_t from below; the cell produces an output y_t upward and a new hidden state h_t to the right, which is passed to the next time step$

One machine. Applied step by step. The hidden state threads through every step, carrying a running summary of everything seen.

An RNN Unrolled Across Time

The same network repeated — with a hidden state threading through all the steps.

Vanishing and Exploding Gradients

Conceptually elegant. Practically, vanilla RNNs have a problem.

Vanishing gradients

When the network looks back across many steps, the learning signal shrinks toward zero — the RNN can’t learn long-range dependencies. It forgets.

Exploding gradients

Or the opposite — the signal grows uncontrollably and training becomes unstable. The network blows up.

Vanilla RNNs work fine on short sequences (10–20 steps) but struggle past that. We need gated memory.

Inside an LSTM Cell

Hochreiter & Schmidhuber (1997) — a memory cell with three learned gates running along a cell-state highway.

$Inside one LSTM cell at time t: a cell-state highway runs along the top, with three learned gates (forget, input, output) below it. Inputs h_{t-1} and x_t enter from the left and bottom; outputs h_t and y_t exit to the right and top$

All three gates are learned from data. The network discovers what to remember, forget, share — and the cell-state highway lets gradients flow back through long sequences without vanishing.

Hochreiter, S., & Schmidhuber, J. (1997). Long short-term memory. Neural Computation. doi.org/10.1162/neco.1997.9.8.1735

Sequence Models in Psychological Research

Speech Recognition

Until around 2020, all major speech systems were RNN/LSTM-based. Now used in clinical voice analysis, child language research.

EEG & Physiological Signals

Sequence classifiers for brain–computer interface, sleep staging, seizure detection. LSTMs still dominate medical signals.

Gesture & Gait

Classify movements over time, predict next movements. Fall prediction in aged care, intent prediction in BCI.

Herding Behaviour

Auletta et al. (2023) — LSTM + SHAP predicted players’ next target before their conscious intent.

Auletta, F., Kallen, R. W., di Bernardo, M., & Richardson, M. J. (2023). Predicting and understanding human action decisions. Scientific Reports. doi.org/10.1038/s41598-023-31807-1

Inside the Study: Predicting Herding Decisions

Auletta et al. (2023) — an LSTM that predicts which target a player will pursue next, sometimes before they consciously decide.

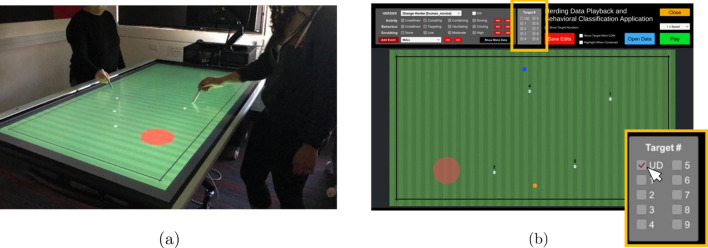

Auletta et al. herding setup: two players around a touch-table; the playback interface showing tracked targets and goal zones

(a) Two players around a multi-touch table herding targets · (b) Playback & classification interface

Task: two players cooperatively corral 4 moving targets into a containment zone
Data: player kinematics (position, velocity) + target states at 60 Hz
Model: LSTM trained on short sequence windows to predict each player’s next target selection

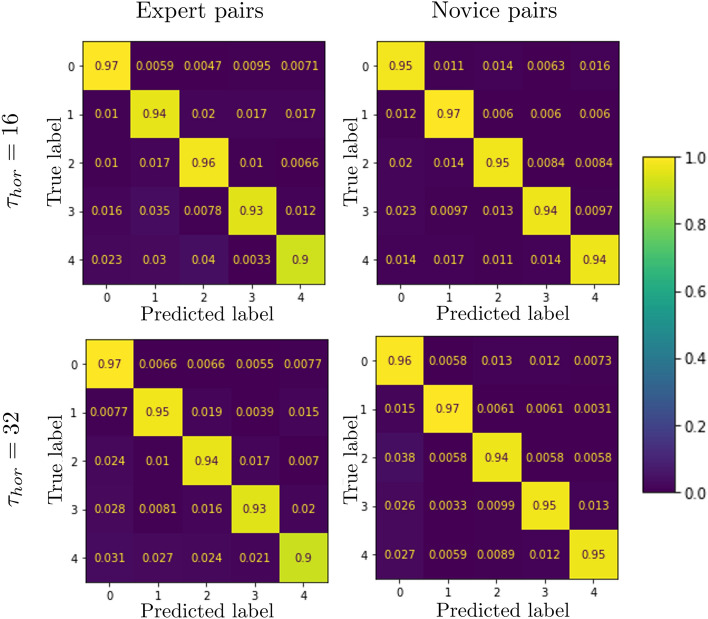

Auletta et al. confusion matrices: classification accuracy of the LSTM at predicting next-target choice for expert and novice pairs, at two prediction horizons. Diagonal accuracies range from 0.90 to 0.97.

Confusion matrices: expert vs novice pairs, at τ_hor = 16 and 32 (longer horizon).

Results: 90–97% accuracy across both skill levels and both horizons. The LSTM’s prediction often precedes the player’s reported conscious decision — movement gives away intent before the chooser knows.

Transformer Teaser: Self-Attention

The architecture that has eaten the world over the past five years is the transformer.

For each element, look at every other element and learn how much each one matters
No recurrence — fully parallel on a GPU
No fixed-distance limit — any element can attend to any other
Replaced RNNs/LSTMs for most language tasks after Vaswani et al. (2017)
Via the Vision Transformer, increasingly replacing CNNs too

Full treatment of attention is coming up — it’s the engine inside every LLM.

Vaswani et al. (2017). Attention is all you need. NeurIPS. arxiv.org/abs/1706.03762

LLMs and Generative AI

Behind the curtain of ChatGPT

What an LLM Actually Is

Three ingredients, one outcome.

1. Transformer

The architecture from earlier in the lecture. Self-attention, stacked many times.

2. Next-token prediction

Given the text so far, predict the next token. That’s the entire training objective.

3. Scale

Billions of parameters, trillions of training tokens, thousands of GPUs.

That’s it. ChatGPT is “next token, but really big”. Everything else — helpfulness, refusal, formatting — comes from the post-training we’ll cover in a few slides.

Tokenisation: Chopping Up Text

An LLM doesn’t process letters or whole words — it processes tokens, which are typically subwords.

Common words like the are a single token
Rare or long words get split into pieces: psychology → psych + ology
Subword tokenisation handles new compounds and rare words gracefully
A typical model has a vocabulary of 30,000–100,000 tokens

Why does this matter? Tokens are the discrete units that get mapped to embeddings. The model never sees the text directly — it sees a sequence of integers.

Tokenisation in Action

Input sentence:

“Studying psychology is rewarding.”

After tokenisation:

Study ing psych ology is reward ing .

Each chip is one token → one integer ID:

14025 278 31735 2508 374 9889 278 13

From here on, the LLM is doing maths on integers, not letters.

Embeddings: Words as Vectors

Each token ID is mapped to a dense vector of numbers — typically 768 to 4,096 dimensions long.

cat [0.12, -0.43, 0.88, …, 0.05]

dog [0.18, -0.39, 0.85, …, 0.07]

Tuesday [-0.72, 0.31, 0.04, …, -0.89]

Vectors are learned so that similar tokens end up close together in space.

“cat” sits near “dog”. Far from “Tuesday”. “depressed” sits near “sad”, “lonely”, “anhedonic”. Far from “rollerblade”.

The closeness of vectors is the model’s representation of meaning. Nothing is stored about the letters — only about which other tokens this one tends to appear near.

Meaning as Geometry

A 2D projection of embedding space showing four labelled clusters — Emotions, Cognition, Statistical methods, People — with vector arithmetic shown in the centre (king − man + woman ≈ queen)

Vector Arithmetic on Meaning

If meaning lives in geometry, you can do arithmetic on concepts.

vec(king) − vec(man) + vec(woman) ≈ vec(queen)

Famous example from Mikolov et al. (2013)
Relationships between concepts show up as consistent vector directions
Paris − France + Italy ≈ Rome
The representations have structure — and that structure looks like the structure of meaning

Mikolov, T., Chen, K., Corrado, G., & Dean, J. (2013). Efficient estimation of word representations in vector space. arxiv.org/abs/1301.3781

Sentence and Document Embeddings

Pool the token embeddings for a whole interview transcript and you get one vector per document.

Now you can do quantitative things to qualitative data:

Cluster Transcripts

Quantitative thematic analysis — group similar interviews automatically.

Semantic Search

Find responses similar to a target answer, even if they share no exact words.

Track Change Over Time

Measure shifts in how someone describes their experience across sessions or years.

Auto-Coding Support

Pre-label transcript chunks for human review. Speeds qualitative analysis dramatically.

See Demszky et al. (2023) for a thorough review of LLMs in psychology. Nature Reviews Psychology. doi.org/10.1038/s44159-023-00241-5

Play With This Yourself

TensorFlow Embedding Projector

Hover over any word and see its nearest neighbours in 3D embedding space.

A surprisingly effective intuition pump for the “meaning is geometry” idea.

projector.tensorflow.org

Try the Word2Vec 10K demo. Type “depression” into the search box. Look at what comes up.

Think About It

If an LLM “knows” that depression is related to insomnia because their embeddings sit near each other in a high-dimensional space, is that the same kind of knowing that a clinical psychologist has?

What does the model not have access to that the clinician does — lived experience, embodied affect, the relational context of a session — and does it matter for what we use the model for?

Self-Attention: The Intuition

For each token in the input, the model asks:

“Which other tokens should I pay attention to?”

In “The cat sat on the mat because it was tired”, the word “it” needs to attend to “cat” (not “mat”) to resolve the pronoun
In “The bank by the river was steep”, “bank” needs to attend to “river” to pick the right meaning
The model learns these attention patterns from data — nobody writes them
Attention patterns turn out to be interpretable: pronoun resolution, syntactic links, semantic groupings

An Attention Pattern, Visualised

A short sentence with self-attention weights visualised as line thickness between words

Line thickness = attention weight. Some tokens attend strongly to one or two others; some spread their attention more evenly.

Q, K, V — Without Maths

Each token is projected into three vectors:

Query

“What am I looking for?”

Key

“What do I offer?”

Value

“What do I carry?”

Compare each token’s Q to every other token’s K → attention scores
Use those scores to weight the V vectors
Result: a new representation for each token, mixed from the tokens it most needed to attend to

Multi-Head Attention & Stacked Blocks

Multi-head: several attention “channels” in parallel, each learning a different kind of relationship
One head might learn pronoun–referent links
Another might learn subject–verb agreement
A transformer block = one multi-head attention + a small feedforward network
Modern LLMs stack 30–100+ blocks

Transformer Block N

attention + feedforward

· · ·

Transformer Block 3

attention + feedforward

Transformer Block 2

attention + feedforward

Transformer Block 1

attention + feedforward

Token Embeddings In

Each block builds a richer representation. The output of block N is the input to block N+1.

From Pre-Training to ChatGPT

ChatGPT is not one training run. It is three stages, stacked.

1. Pre-training

Billions of pages of internet text. Predict the next token. No human labels.

→

2. Instruction Tuning

Fine-tune on (question, helpful answer) pairs written by humans.

→

3. RLHF

Humans rank outputs. Model learns to produce what humans prefer.

After Stage 1

The model is excellent at predicting plausible text but not at following instructions. Ask raw GPT “What is the capital of France?” and it might continue with “What is the capital of Germany?”.

“What ChatGPT knows” → pre-training.
“How ChatGPT behaves” → instruction tuning + RLHF.

Stages 2 & 3: Making It a Helpful Assistant

2. Instruction Tuning

Fine-tune on (question, helpful answer) pairs written by humans.

The model learns the form of being a helpful assistant.

3. RLHF

Reinforcement Learning from Human Feedback.

Humans rank pairs of model outputs. Model trained to produce outputs humans prefer.

RLHF makes ChatGPT polite, helpful, and risk-averse
It is also why ChatGPT sometimes refuses reasonable requests or hedges excessively — same training signal
The original recipe is in Ouyang et al. (2022) — the InstructGPT paper

Ouyang et al. (2022). Training language models to follow instructions with human feedback. arxiv.org/abs/2203.02155

What LLMs Can and Can’t Do

Hallucinations are not a bug — they’re a property of the architecture. The model predicts plausible next tokens, not true ones.
Context window — how much the model can attend to at once. Modern models: 8,000 to 1,000,000 tokens.
Tool use — newer models call out to calculators, search engines, code interpreters, partially mitigating hallucinations on facts and arithmetic.

Good at

Coding help, summarising, drafting, brainstorming, semantic search, qualitative coding support.

Bad at

Verifiable factual recall without a tool. Anything where the cost of being wrong is high and you can’t independently verify.

Vision-Language Models

Text and image share one context window: the model sees both and reasons about them together.

A wooden dock extending into a calm lake, surrounded by forest and mountains — the canonical LLaVA demo image

Image: LLaVA team demo (llava-vl.github.io)

You

What’s in this image, and what would I want to keep in mind if I went there?

Vision-language model

A wooden dock extends into a calm lake surrounded by forest and mountains. Conditions look chilly and the water is glassy — great for photography. Bring layers, watch your footing on the boards (looks wet), and check for biting insects at dusk.

GPT-4o (OpenAI)

Reads screenshots, diagrams, scanned documents, charts.

Gemini (Google)

Long context (1M+ tokens), strong document and chart understanding.

Claude (Anthropic)

Vision + reasoning, screenshot interpretation, document parsing.

Open-source: LLaVA, Qwen-VL

Comparable open-weight models you can run locally — essential when data can’t leave your machine.

Research uses

Auto-code behavioural images, score facial expressions, parse scanned questionnaires, accessibility tools.

Caveats

Same risks as text LLMs — hallucinations, bias, confident wrong answers on edge cases. Verify before trusting.

Think About It

A vision-language model can now look at a photo of a participant’s face and produce a paragraph describing their probable mood, attention, and demographics — in seconds, at scale.

What kinds of psychological studies does this enable? What kinds of mistakes would worry you most? Would you use it to generate participant labels for training another model, or only as one signal among several?

Common Misconceptions

Myth #1

“LLMs understand what they say.”

Reality: They predict next tokens consistent with patterns in their training data. Whether that constitutes “understanding” is philosophically contested — see Bender et al. (2021) for the influential sceptical view. Treat it operationally as sophisticated pattern matching unless you have a reason to do otherwise.

Myth #2

“Bigger is always better.”

Reality: Scaling helps up to a point — but quality of training data, instruction tuning, and RLHF matter at least as much. A well-tuned smaller model often beats a poorly-tuned giant one.

Myth #3

“Open-source LLMs are a year behind.”

Reality: Closer to three to six months on most benchmarks — and they run on a laptop (Llama, Mistral, Qwen). Critical for research where you can’t send participant data to a third-party API.

Myth #4

“GenAI for images and text are the same thing.”

Reality: They are not. Autoregressive transformers and diffusion models are different objects that share an “ingest a prompt, produce content” interface but work very differently inside.

What You’ve Built Over 11 Weeks

Weeks 1–6

Supervised ML

Regression, regularisation, classification, trees, random forests.

Weeks 7–8

Unsupervised ML

Clustering, PCA, UMAP — finding structure without labels.

Weeks 9–10

Neural Networks

From perceptron to MLP to a working PyTorch model on real EEG data.

Week 11

Deep Learning & LLMs

CNNs, RNNs, transformers, embeddings — the map of everything-else.

You started this course with no coding and no ML background. You finish it with a working understanding of every major area of modern data science — and the LLM skills to keep going.

Week 12: The Viva

Viva definition pool — released today in weeks/week-12-viva-review/
Short-answer pool — also released today
Questions drawn from across all 11 weeks
Format: short, structured, focused on understanding not memorisation
Week 13 — a discussion seminar on where the field is going and how to use these tools responsibly in your honours project

How to study

Skim each week’s companion reading. Walk through the slide deck’s key figures.

For lab weeks, re-open your notebooks — the act of running a cell brings the concept back.

Use the AI as your study partner. Ask it to quiz you.

Questions?

PSYC4411 · Week 11

Thank you — see you for the viva in Week 12.

Beyond Tabular · 18 May 2026
